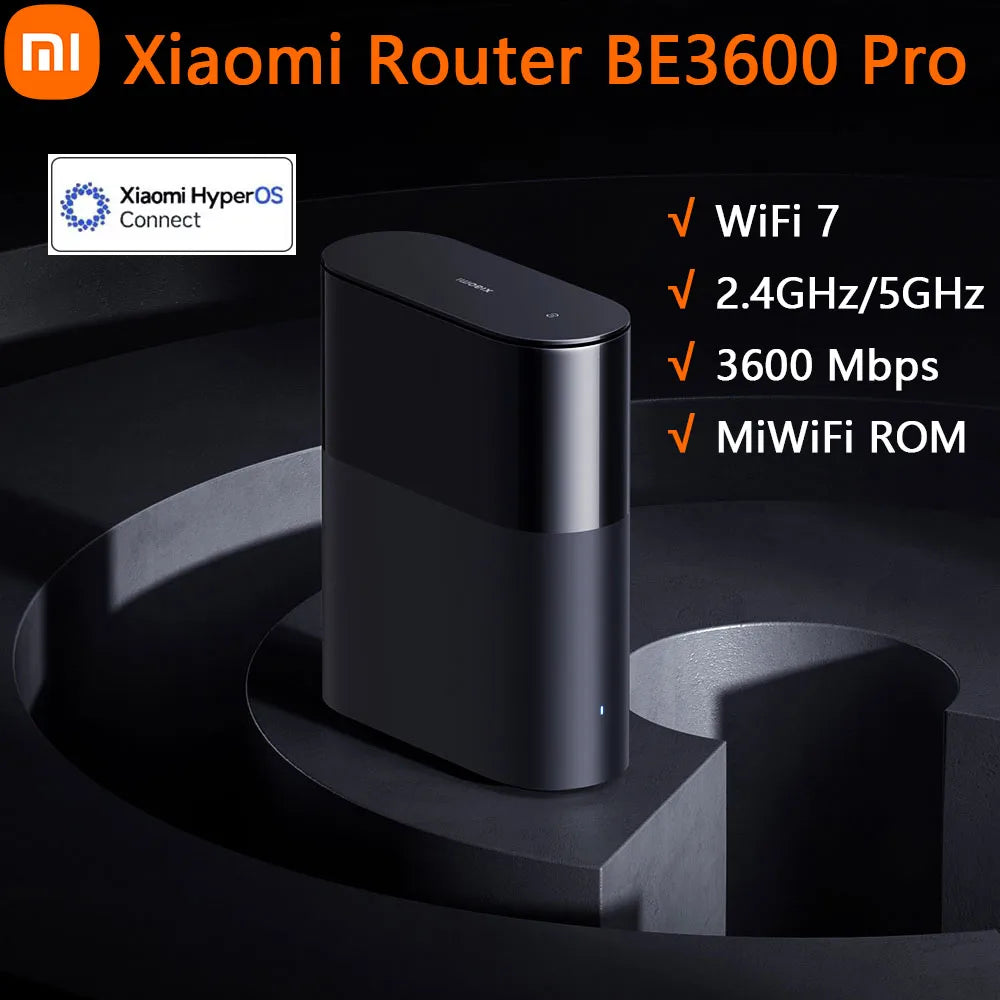

Xiaomi Router BE3600 Pro WiFi 7 Dual-Band WAN LAN 2.4/5GHz Qualcomm Quad-core 3570Mbps Gaming Acceleration Mesh Network Repeater

NOTE:
1 The langauge and User manual both are Chinese, the original plug is Chinese plug, you can add adapter as you need;
2 Please download the MiHome application, set the country and region to Chinese Mainland, and then search for Xiaomi Router BE3600 Pro. Thank you

Xiaomi Router Connection Steps
1. Connect the router to the power supply and connect to the network cable
2. When the indicator light turns blue, use your mobile phone to search for the WiFi transmitted by the router
3. Connect to WiFi, it will automatically jump to the setting page, and set a WiFi password according to the prompt
4. After completing the settings, the WiFi will automatically restart, and it can be used normally after reconnecting

Hardware configuration
Product name --Xiaomi Whole house route BE3600 Pro
Processor -- Qualcomm quad-core 1.1GHz CPU
Memory --512MB
2.4G Wi-Fi-- 2X2 (theoretical maximum speed up to 688Mbps)
5G Wi-Fi-- 2X2 160MHz(theoretical maximum speed up to 2882Mbps)
Product antenna --4 built-in antennas

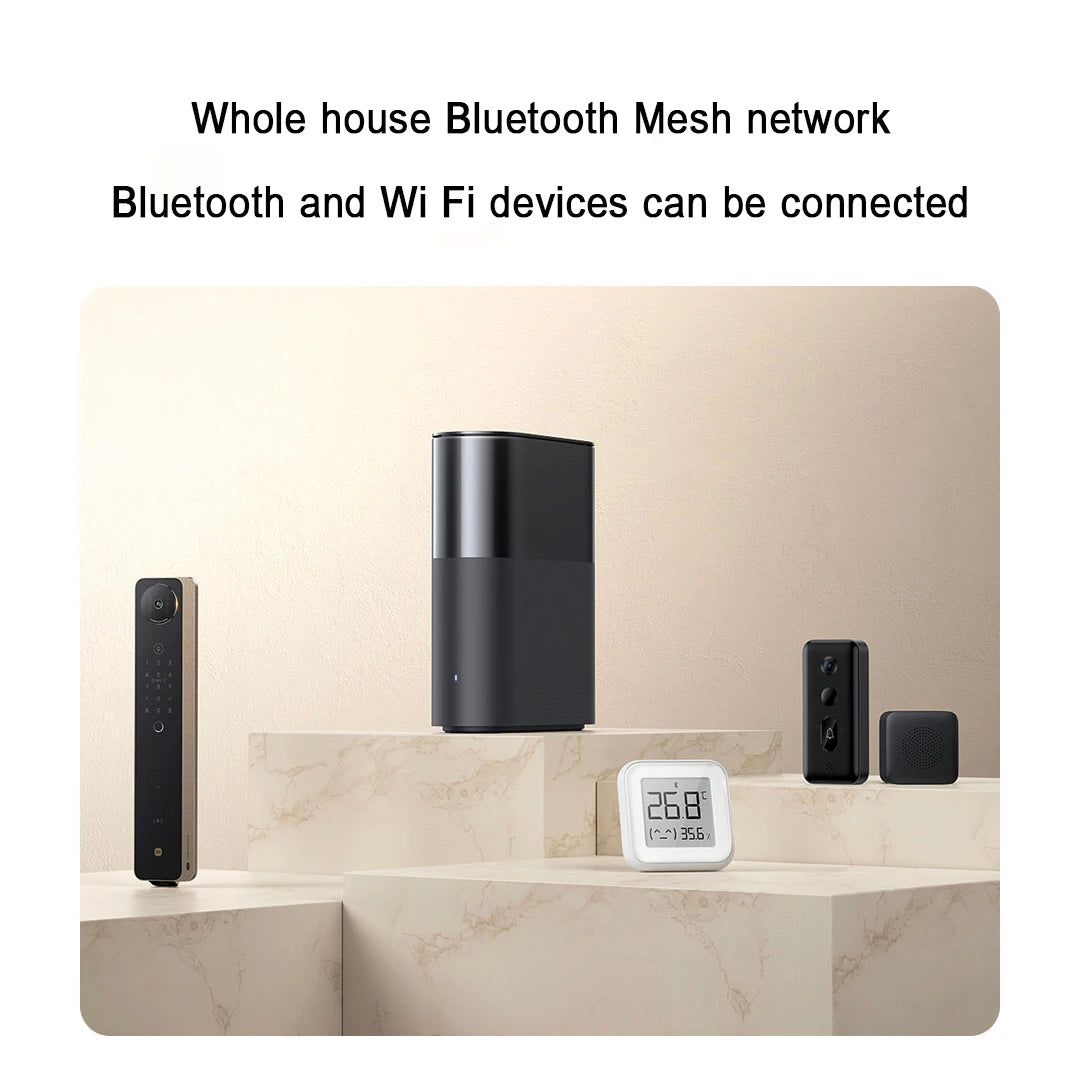

Bluetooth Mesh Gateway - Supported
NFC Touch connection - Support (Android phone only)
Product heat dissipation - natural heat dissipation
Overall interface: 1 x 10/100/1000/2500M adaptive WAN/LAN port
3 x 10/100/1000M adaptive WAN/LAN port
LED indicator --1
MESH/RESET button --1
Power input port --1

Wireless parameter
Dual frequency -2.4GHz and 5GHz
Wireless Channel --2.4GHz Channel: 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11,12, 13
5GHz Channel: 36, 40, 44, 48, 52, 56, 60, 64,149, 153, 157, 161, 165

Software parameter
Operating system --MiWiFi ROM
Wireless security -WPA-PSK/WPA2-PSK/WPA3-SAE encryption, wireless access control (black and white list), SSID hiding, anti-network
Management application -- Support Web, Mijia App (Android&iOS)

Working environment
Working environment temperature --0~40℃
Working humidity --10%~90% RH (non-condensing)
Storage temperature --- -40 to 70° C
Storage humidity --5%~90% RH (non-condensing)

Packing list
Router ×1
Network cable x 1
CN adapter x 1
Instructions ×1
